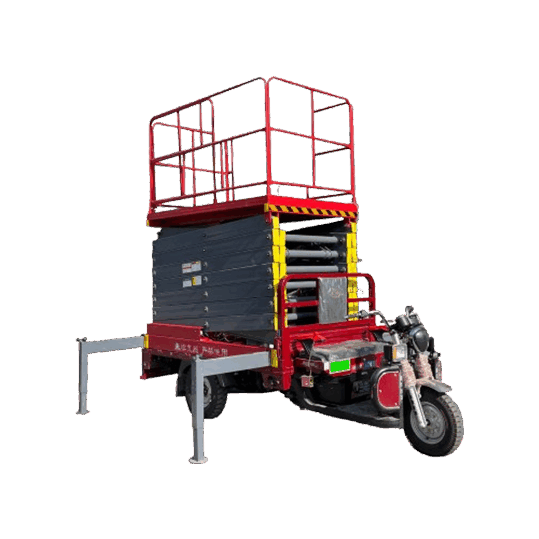

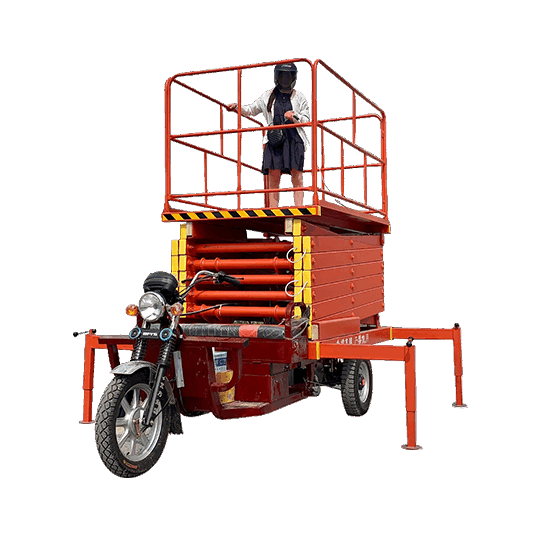

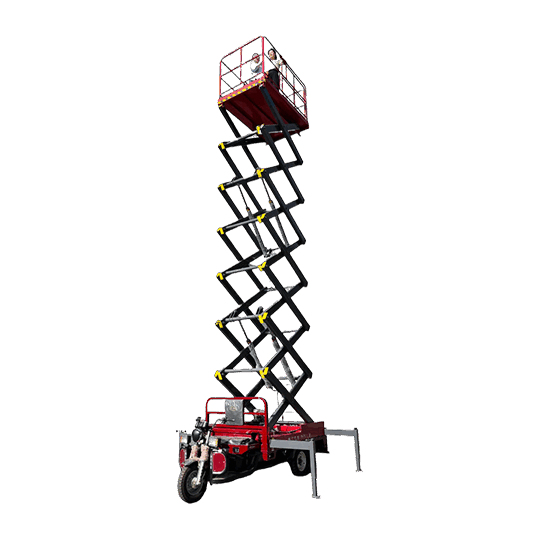

The tricycle-driven scissor lift is an aerial work equipment that mounts a scissor lifting mechanism on a tricycle chassis. It features strong mobility, allowing flexible movement between different work sites, and is suitable for long-distance and large-scale aerial operations. It is widely used in fields such as enterprises, municipal administration, gardening, residential property management, advertising companies, and communication companies.
500kg
Load Capacity4-12m
Max Platform Height6-14m
Max Working HeightFlexible in movement and convenient to ride, suitable for long-distance and large-scale aerial work.
Large load-bearing capacity and can meet the needs of multiple people working at the same time.
Easy to operate, with stable lifting and lowering, and is safe and reliable.
| Model | BSSL-4 | BSSL-6 | BSSL-8 | BSSL-10 | BSSL-11 | BSSL-12 |
| Dimension | ||||||
| Max. Working Height | 6m | 8m | 10m | 12m | 13m | 14m |
| Max. Platform Height | 4m | 6m | 8m | 10m | 11m | 12m |
| Platform Size(L×W) | 2.01×0.8m | 2.01×0.83m | 2.01×0.83m | 2.01m×1.13m | 2.01m×1.13m | 2.5×1.21m |
| Overall Size(L×W×H) | 3.3×1.2×1.27m | 3.3×1.2×1.37m | 3.3×1.2×1.47m | 3.53×1.5×1.65m | 3.53×1.5×1.78m | 4×1.65×1.98m |
| Performance | ||||||
| Load Capacity | 500kg | 500kg | 500kg | 500kg | 500kg | 500kg |
| Lifting Speed | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min |
| Power | ||||||
| Voltage | 48V/50HZ DC | 48V/50HZ DC | 48V/50HZ DC | 48V/50HZ DC | 48V/50HZ DC | 48V/50HZ DC |
| Lifting Motor | 1.6KW | 1.6KW | 1.6KW | 2.2KW | 2.2KW | 3KW |
| Weight | ||||||
| Weight | 1010kg | 1110kg | 1210kg | 1600kg | 1740kg | 2430kg |
