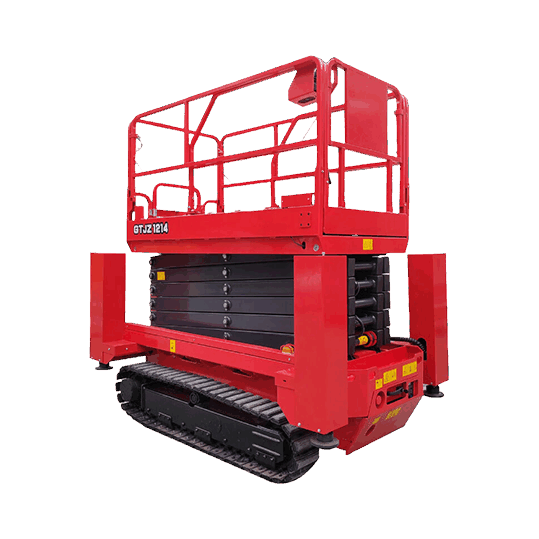

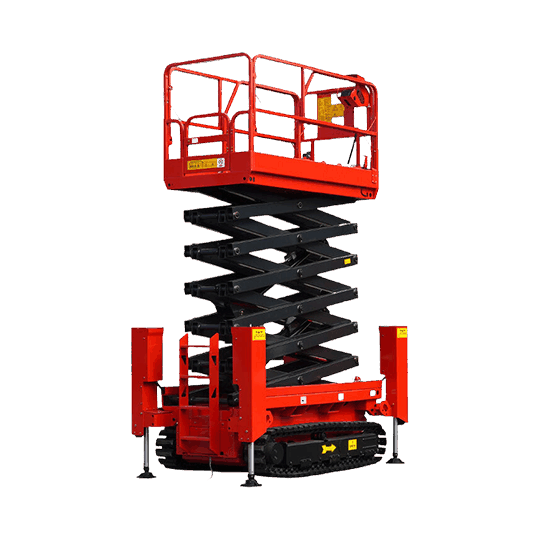

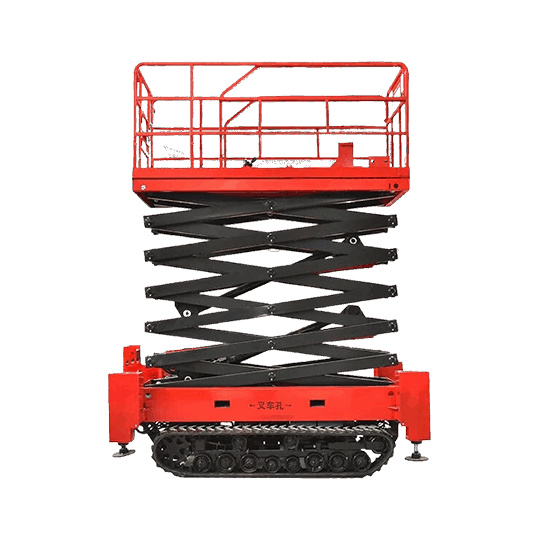

Crawler Scissor Lift

Crawler scissor lift design allows flexible operation in complex terrain such as uneven terrain and areas that are difficult to access with traditional machinery. 360° steering, electronic drive system, easy to operate, high efficiency, environmental protection, energy saving.

320kg
Load Capacity
6-12m
Max Platform Height
8-14m
Max Working Height

Inquiry Now Send Email

Product Advantages

01
Adopting high-power AC motor strong power high efficiency and strong endurance.
02
Rubber and steel tracks available, strong off-road ability suitable for all kinds of harsh construction environments.
03
Adopting single handle to control steering and traveling it can realize 360° steering and simpler operation.
04
Intelligent human-machine interaction system easy to get the status of the equipment so as to operate and manage.

Standard Features

Proportional Control
Self-lock Gate On Platform
Extension Platform
Crawler
Automatic Brake System
Emergency Descent System
Emergency Stop Button
Tubing Explosion-Proof System
Fault Diagnosis System
Tilt Protection System
Buzzer
Horn
Safety Maintenance Support
Standard Forklift Slot
Charging Protection System
Strobe Lamp
Foldable Guardrail

Products Parameter

Model	BSLD-6	BSLD-8	BSLD-10	BSLD-12
Dimension
Max. Working Height	8m	10m	12m	14m
Max. Platform Height	6m	8m	10m	12m
Overall Length	2.775m	2.775m	2.775m	2.775m
Overall Width	1.485m	1.485m	1.485m	1.485m
Overall Height(Guardrails Up)	2.39m	2.52m	2.44m	2.74m
Overall Height(Guardrails Down)	1.81m	1.941m	1.865m	2.165m
Platform Size(L×W)	2.27×1.12m	2.27×1.12m	2.27×1.12m	2.27×1.12m
Platform Extension Size	0.9m	0.9m	0.9m	0.9m
Ground Clearance(Stowed/Raised)	0/0.15m	0/0.15m	0/0.15m	0/0.15m
Turning Radius	0m	0m	0m	0m
Performance‌
Load Capacity	450kg	450kg	320kg	320kg
Platform Extension Load	113kg	113kg	113kg	113kg
Lifting Speed	81/80sec	81/80sec	81/80sec	81/80sec
Travel Speed(Stowed)	2.4km/h	2.4km/h	2.4km/h	2.4km/h
Travel Speed (Raised)‌	0km/h	0km/h	0km/h	0km/h
Gradeability	25%	25%	25%	25%
Max. Working Slope	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Power
Battery	8×6V/200AH	8×6V/200AH	8×6V/200AH	8×6V/200AH
Charger	48V/40A	48V/40A	48V/40A	48V/40A
Lifting Motor	48V/4.5KW	48V/4.5KW	48V/4.5KW	48V/4.5KW
Driving Motor	48V/4KW	48V/4KW	48V/4KW	48V/4KW
‌Weight
Weight‌	3400kg	3500kg	3600kg	3700kg

Send Message

Hot Products

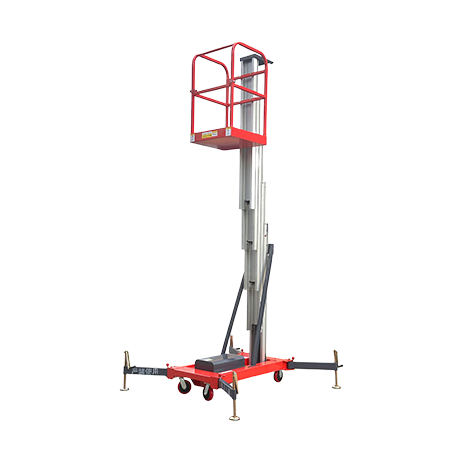

Aluminum Alloy Mast Lift

Aluminum Alloy Mast Lift is made of high-strength aluminum alloy materials. It has the advantages of small volume, light weight, compact structure and easy mobility.

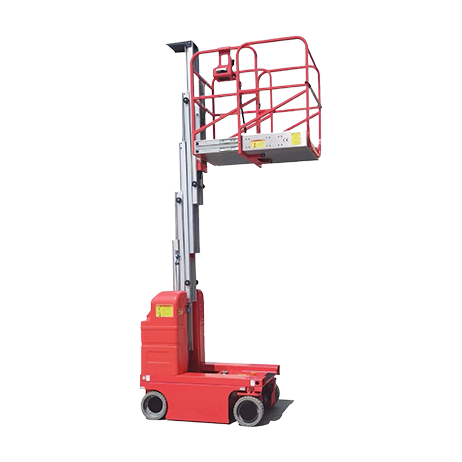

Self-propelled Aluminum Alloy Lift

Self-propelled aluminum alloy lift is compact in size, flexible in movement and has a small turning radius, which makes it convenient to work in narrow spaces. It is an ideal equipment for indoor high-altitude operations.

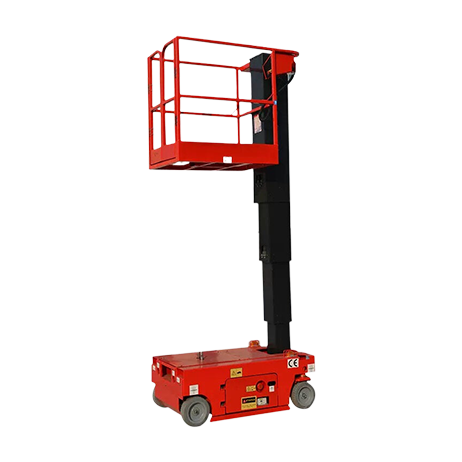

Self-propelled Vertical Mast Lift
