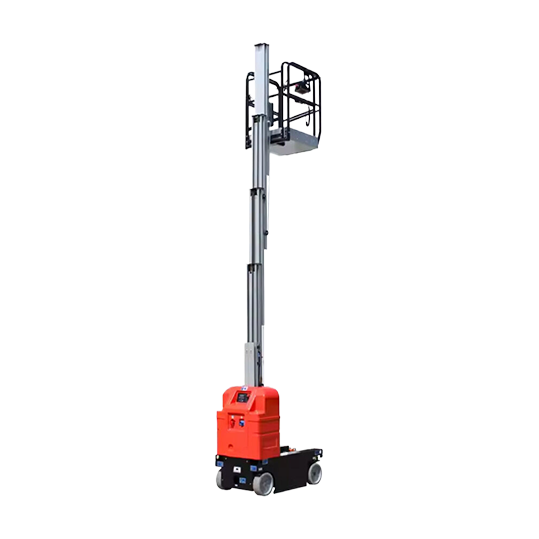

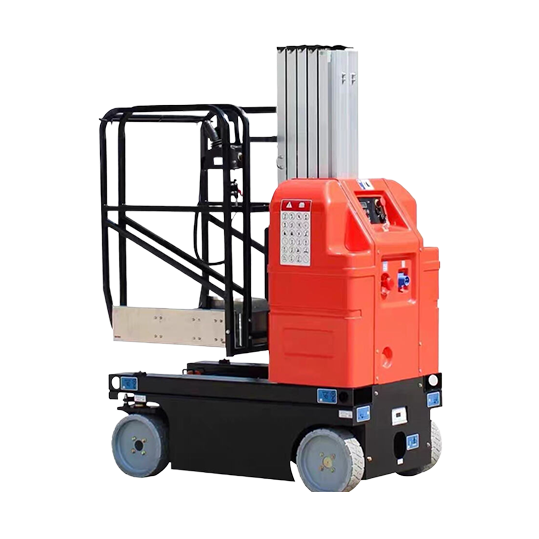

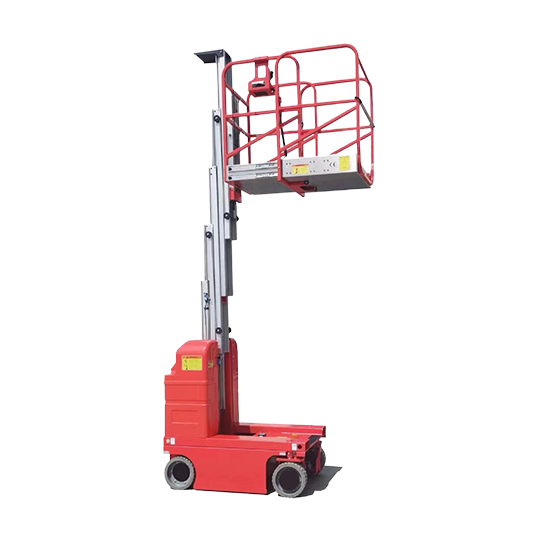

Self-propelled aluminum alloy lift is compact in size, flexible in movement and has a small turning radius, which makes it convenient to work in narrow spaces. It is an ideal equipment for indoor high-altitude operations.
150kg
Load Capacity6-7.5m
Max Platform Height8-9.5m
Max Working HeightFault codes are displayed automatically, facilitating maintenance.
The small turning radius makes it convenient to work in narrow spaces.
With a 25% climbing capacity, it can climb slopes smoothly.
| Model | BSL-6 | BSL-7.5 |
| Dimension | ||
| Max. Working Height | 8m | 9.5m |
| Max. Platform Height | 6m | 7.5m |
| Overall Length | 1.45m | 1.55m |
| Overall Width | 0.76m | 0.76m |
| Overall Height | 1.99m | 1.99m |
| Platform Size (L×W) | 0.66×0.66m | 0.66×0.66m |
| Platform Extension Size | 0.48m | 0.48m |
| Ground Clearance(Stowed) | 100mm | 100mm |
| Ground Clearance(Raised) | 23mm | 23mm |
| Wheelbase | 1.14m | 1.14m |
| Turning Radius(Inside/Outside) | 0/1.5m | 0/1.5m |
| Tyres | Φ305×100mm | Φ305×100mm |
| Performance | ||
| Load Capacity | 150kg | 150kg |
| Platform Extension Load | 75kg | 75kg |
| Up/Down Speed | 48/40s | 48/40s |
| Travel Speed(Stowed) | 3.5km/h | 3.5km/h |
| Travel Speed (Raised) | 0.8km/h | 0.8km/h |
| Gradeability | 25% | 25% |
| Max.Working Slope | 1.5 ° | 1.5 ° |
| Power | ||
| Battery | 2×12V/105AH | 2×12V/105AH |
| Charger | 24V/15A | 24V/15A |
| Lifting Motor | 1.2KW | 1.2KW |
| Driving Motor | 0.5KW | 0.5KW |
| Weight | ||
| Weight | 1200kg | 1230kg |
