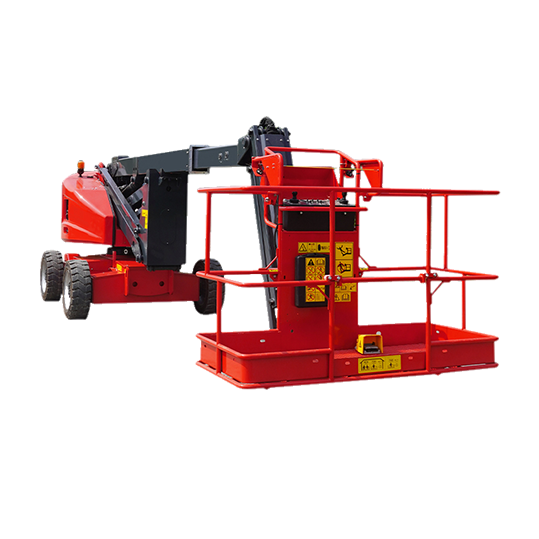

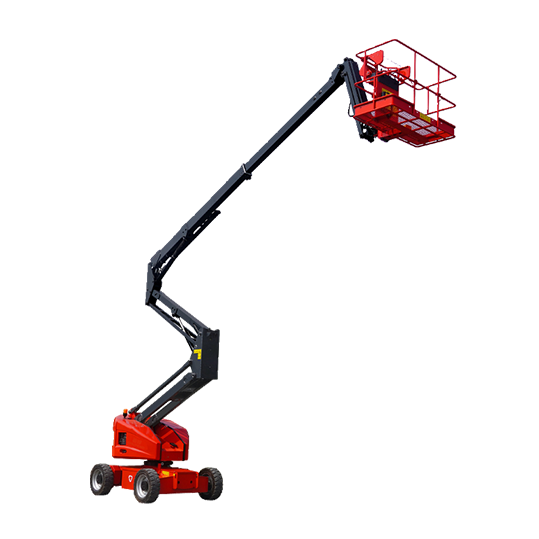

Diesel articulated boom lift is powered by diesel, with a working height ranging from 16 to 22.5 meters. It has the advantages of energy efficiency, a wide operating range, and a long service life.
230-350kg
Load Capacity14-20.5m
Max Platform Height16-22.5m
Max Working HeightEnergy saving, efficient and little maintenance cost.
Wide working range with a large load capacity.
Strong four-wheel off-road ability to adapt to multiple terrains.
Complete safety protection device to guarantee workers’ safety.
| Model | BSQB-14D | BSQB-16D | BSQB-18D | BSQB-20D |
| Dimension | ||||
| Max.Working Height | 16m | 17.9m | 20.2m | 22.5m |
| Max.Platform Height | 14m | 15.9m | 18.2m | 20.5m |
| Overall Length(Stowed) | 6.73m | 7.43m | 8.50m | 8.50m |
| Overall Width | 2.3m | 2.3m | 2.44m | 2.44m |
| Overall Height(stowed) | 2.2m | 2.2m | 2.40m | 2.40m |
| Platform Size(L×W) | 1.4×0.7m | 1.4×0.7m | 1.8×0.76m | 1.8×0.76m |
| Max.Working Radius | 7.5m | 8.9m | 11.6m | 11.8m |
| Max.Up and Over Clearance | 7.2m | 7.7m | 8.0m | 9.4m |
| Wheelbase | 2.36m | 2.36m | 2.5m | 2.5m |
| Ground Clearance(Center) | 0.38m | 0.38m | 0.38m | 0.38m |
| Turning Radius(inside) | 3.2m | 3.2m | 3.2m | 3.2m |
| Turning Radius(outside) | 5.2m | 5.2m | 5.35m | 5.35m |
| Tyres | 33×12-20 | 33×12-20 | 33×12-20 | 33×12-20 |
| Performance | ||||
| Load Capacity | 230kg | 230kg | 230kg(unrestricted)/350kg(restricted) | 230kg(unrestricted)/350kg(restricted) |
| Turntable Rotation | 360°continuous | 360°continuous | 360°continuous | 360°continuous |
| Platform Rotation | 160° | 160° | 160° | 160° |
| Platform Occupancy | 2 | 2 | 2/3 | 2/3 |
| Vertical Jib Rotation | ±70° | ±70° | ±70° | ±70° |
| Platform Leveling | Automatic Leveling | Automatic Leveling | Automatic Leveling | Automatic Leveling |
| Drive Speed (stowed) | 5.5km/h | 5.5km/h | 5.2km/h | 5.0km/h |
| Drive Speed(extended) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Gradeability(Stowed) | 45% | 45% | 45% | 45% |
| Driveing×Steering | 4×2 | 4×2 | 4×2 | 4×2 |
| Power | ||||
| Engine | KUBOTA | KUBOTA | KUBOTA | KUBOTA |
| Power | 36KW/2600rpm | 36KW/2600rpm | 36KW/2600rpm | 36KW/2600rpm |
| Control Voltage | 12V DC | 12V DC | 12V DC | 12V DC |
| Emergency Power System | 12V electric | 12V electric | 12V electric | 12V electric |
| Fuel Tank Volume | 68L | 68L | 105L | 105L |
| Hydraulic Tank | 104L | 104L | 125L | 125L |
| Weight | ||||
| Weight | 6900kg | 7450kg | 9600kg | 10100kg |
