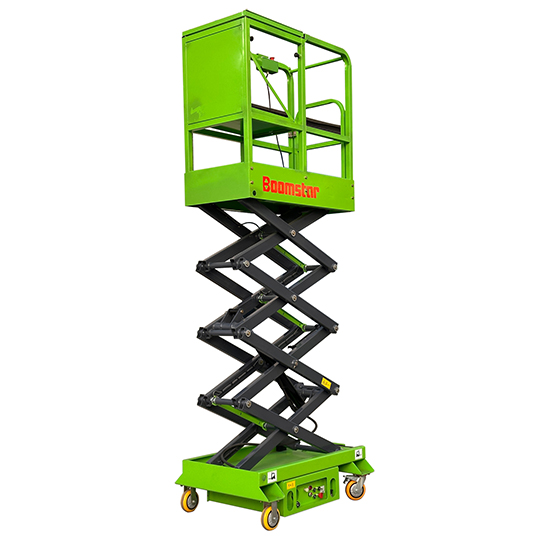

Mini scissor lift is specifically designed for indoor high-altitude operations. Its small size, light weight, simple structure make it easier to operate and maintain, and extremely low failure rate reduces customer maintenance costs. It is widely used in supermarkets, low rise maintenance, decoration companies, and other low rise places.
240kg
Load Capacity3.7m
Max Platform Height5.7m
Max Working HeightSmall size, light weight, one person can operate, easy to work in narrow spaces.
Scissor type structure, smooth lifting and safer.
The universal wheel moves with self-locking function.
Specially designed for indoor outdoor aerial works with lower height and narrow space.
| Model | BSM |
| Dimension | |
| Max. Working Height | 5.7m |
| Max. Platform Height | 3.7m |
| Overall Size(L×W×H) | 1.32×0.85×1.82m |
| Platform Size(L×W) | 1.18×0.60m |
| Ground Clearance | 60mm |
| Turning Radius(Inside) | 1.2m |
| Tyres | Φ150mm |
| Performance | |
| Load Capacity | 240kg |
| Lifting Speed(Ascend) | 53s |
| Lifting Speed(Descend) | 50s |
| Power | |
| Battery | 1×12V/60AH |
| Lifting Motor | 12V/0.8KW |
| Weigh | |
| Weight | 600kg |
