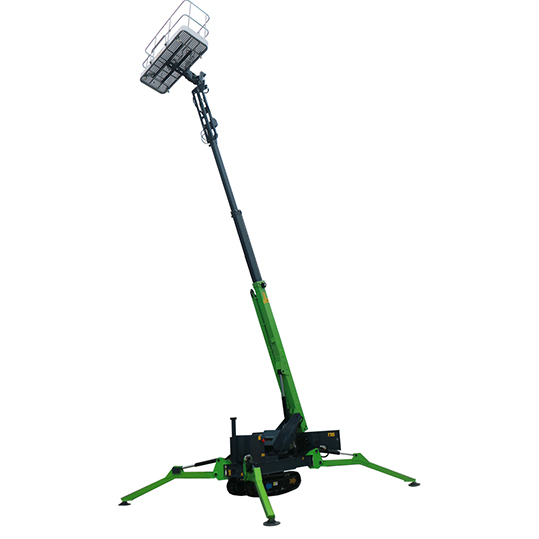

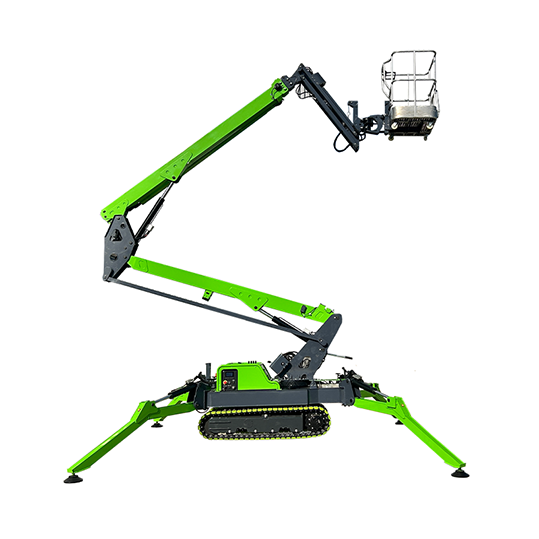

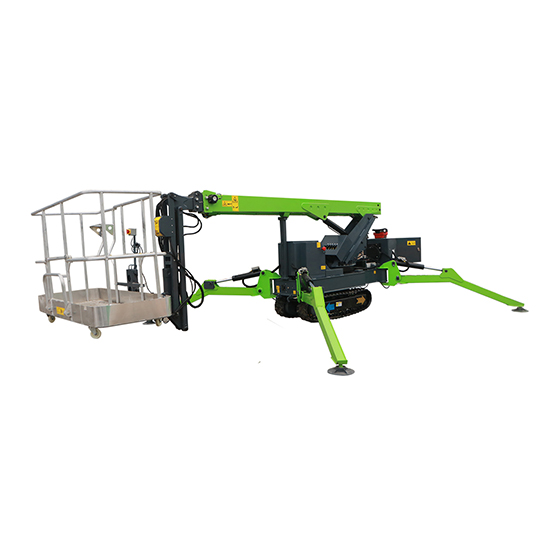

Crawler spider boom lift design allows flexible operation in complex terrain such as uneven terrain and areas that are difficult to access with traditional machinery. Its advantages are compact design, wide working range, energy saving, and the use of dual redundant safety protection system, suitable for indoor and outdoor operations.
200kg
Load Capacity8-17.3m
Max Platform Height10-19.3m
Max Working HeightCompact design and light self weight for easy mobility and storage.
Flexible turning ability for precise positioning and efficient work.
Adopting CAN bus intelligent control to ensure micro-motion performance, stability, and operational comfort.
Adopting dual redundancy protection to ensure the safety of worker.
| Model | BSLB-8 | BSLB-10 | BSLB-12 | BSLB-14 | BSLB-16 | BSLB-18 |
| Dimension | ||||||
| Max.Working Height | 10m | 12m | 14m | 15.7m | 17.7m | 19.3m |
| Max.Platform Height | 8m | 10m | 12m | 13.7m | 15.7m | 17.3m |
| Max.Working Radius | 5m | 5.5m | 6.2m | 7.6m | 8.6m | 8.6m |
| Overall Length(Stowed) | 4.7m | 5m | 5.3m | 4.8m | 5.3m | 5.7m |
| Overall Width | 0.75m | 0.75m | 0.75m | 0.85m | 0.85m | 0.85m |
| Overall Height(Stowed) | 1.9m | 1.9m | 1.9m | 2.0m | 2.0m | 2.0m |
| Platform Size(L×W) | 1.1×0.7m | 1.1×0.7m | 1.1×0.7m | 1.1×0.7m | 1.1××0.7m | 1.1×0.7m |
| Max.Up and Over Clearance | / | / | / | 5.5m | 6.0m | 6.4m |
| Outrigger Footprint Length | 4m | 4m | 4m | 4.3m | 4.3m | 4.3m |
| Outrigger Footprint Width | 2.6m | 2.6m | 2.6m | 4m | 4m | 4m |
| Performance | ||||||
| Load Capacity | 200kg | 200kg | 200kg | 200kg | 200kg | 200kg |
| Turntable Rotation | 355° | 355° | 355° | 355° | 355° | 355° |
| Platform Rotation | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° |
| Platform Occupancy | 2 | 2 | 2 | 2 | 2 | 2 |
| Vertical jib Rotation(up/down) | -90° - 0° | -90° - 0° | -90° - 0° | -90° - 0° | -90° - 0° | -90° - 0° |
| Drive Speed(Stowed) | 2.5km/h | 2.5km/h | 2.5km/h | 3km/h | 3km/h | 3km/h |
| Gradeability(Stowed) | 25% | 25% | 25% | 25% | 25% | 25% |
| Max. Working Slope | 10° | 10° | 10° | 10° | 10° | 10° |
| Power | ||||||
| Battery | 48V/300AH | 48V/300AH | 48V/300AH | 48V/300AH | 48V/300AH | 48V/300AH |
| Control Voltage | 24V | 24V | 24V | 24V | 24V | 24V |
| Charger | 48V/35A | 48V/35A | 48V/35A | 48V/35A | 48V/35A | 48V/35A |
| Weight | ||||||
| Weight | 1720kg | 1790kg | 1880kg | 2300kg | 2425kg | 2460kg |
