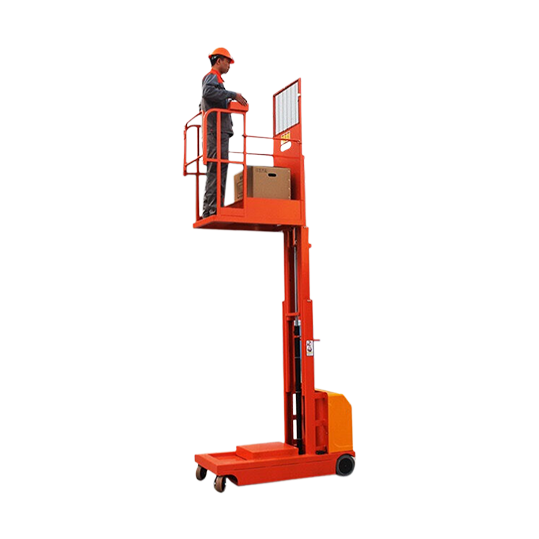

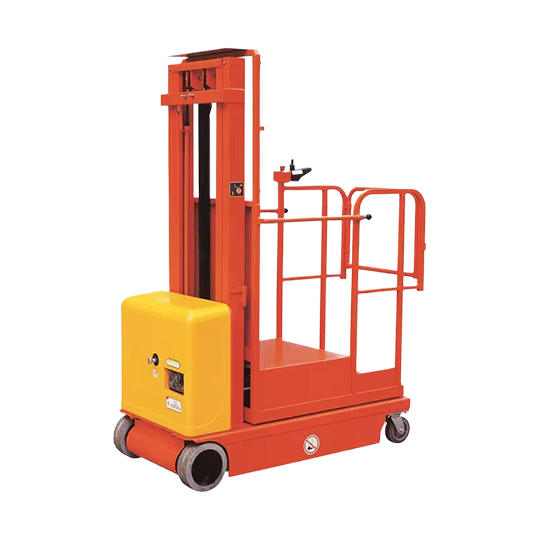

Self-propelled Stock Order Picker is a type of lift specially designed for fetching materials at high altitudes. It is small in size, flexible in movement, and can walk at full height, making it easy to pick up goods at high altitudes. It is widely used in warehouses, workshops, material stacking and other occasions.
300kg
Load Capacity4.35m
Max Platform Height6m
Max Working HeightCompact in size and flexible in movement.
Able to walk at full height.
Powered by a storage battery, no external power supply required.
| Model | BSQL-6 |
| Dimension | |
| Max. Working Height | 6m |
| Max. Platform Height | 4.35m |
| Overall Length | 1.57m |
| Overall Width | 0.82m |
| Overall Height | 2m |
| Platform Size(L×W) | 0.7×0.6m |
| Ground Clearance | 35mm |
| Turning Radius | 1.5m |
| Driving wheel | φ230x80mm |
| Steering Wheel | Φ150mm |
| Performance | |
| Load Capacity | 300kg |
| Travel Speed(Stowed) | 4.5km/h |
| Travel Speed(Raised) | 1.5km/h |
| Gradeability | 20% |
| Power | |
| Battery | 2×12V/85AH |
| Charger | 24V/15A |
| Lifting Motor | 24V/1.6KW |
| Weight | |
| Weight | 650kg |
